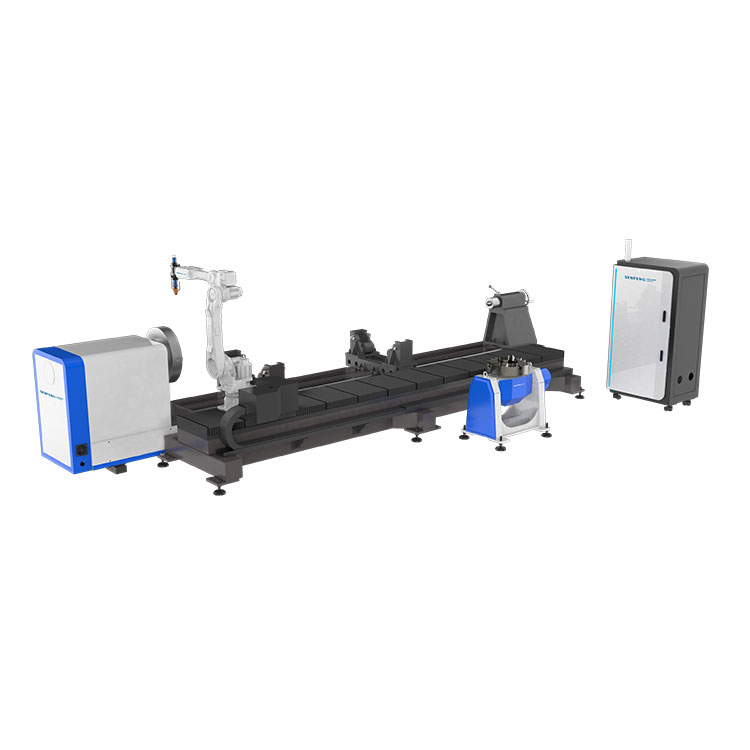

Robot Laser Cladding Machine

The robot cladding machine is a large-scale laser remanufacturing equipment independently developed by senefng laser based on industrial six-axis robots.
  • SFR5050
  • SENFENG LEIMING LASER

Product Description

The robot cladding machine is a large-scale laser remanufacturing equipment independently developed by senefng laser based on industrial six-axis robots. The equipment is mainly composed of six-axis industrial robot, rollover tooling, biaxial positioner, robot walking axis, workbench, laser, powder feeder, cladding and human-machine interface control system.

The robot cladding machine has complete functions, diverse performances and strong versatility. It can realize the cladding of shaft surface, curved surface and special-shaped parts. It is simple to operate and easy to maintain.



Technical Parameters

Model

SFR5050

Laser Power

1-20kw

Fiber core diameter

600μm

Robot



Model

HH020

 Wingspan

1742mm

Load capacity

20kg

Repeat positioning accuracy

±0.06mm

Robot Walking Axis Stroke

4000mm

Horizontal Rotary Table

Maximum load capacity(Have a roller)

10 T

Maximum workpiece diameter

1200mm

Maximum weight of clamping workpiece(Without the roller)

3 T

Spindle speed

150 RPM

Maximum length of workpiece

5000mm

Biaxial positioner

Load capacity

500kg

Maximum Speed of A-axis

24 RPM

Maximum Speed of B-axis

37 RPM

Variable Position Angle(Relative vertical direction)

≤±120°

Four-jaw independent chuck

Φ500mm

Powder feeder

Double barrel pneumatic powder feed

Cladding head

Three-point nozzle + powder divider, shaping module, linear nozzle + powder divider



Application

The robot cladding workstation is mainly suitable for surface modification of materials, surface repair of products and prototype manufacturing.

It is widely used in coal, metallurgy, offshore platform, papermaking, domestic household appliances, automobile, ship, petroleum and other industries.
