Metal Laser Cladding Machine

Laser cladding is a new surface modification technology, which can achieve the purpose of surface modification or repair by adding cladding material on the surface of substrate.
Quantity:

Product Description

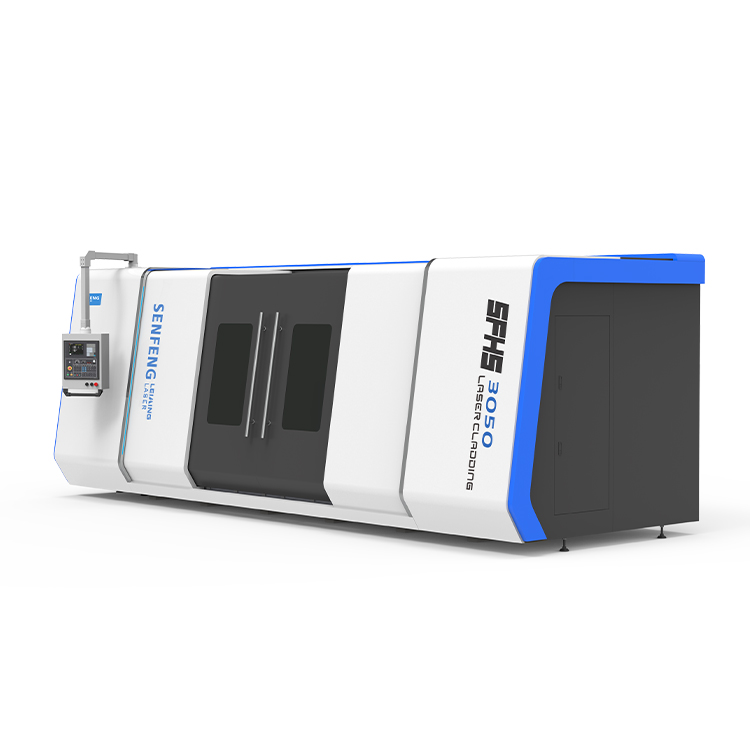

SFHS3050 high-speed laser cladding machine is a high-speed rotating cladding machine with a circular spot. This machine uses high-energy laser beams as the heat source to cladding powder materials on the surface of parts to prepare high-performance protective coatings, thereby improving the surface hardness, wear resistance, corrosion resistance, oxidation resistance, high temperature resistance and other properties of the material.



Technical Parameters



Model SFHS3050

Laser source power

1.5kw/2kw/3kw/4kw/6kw

Powder feeder

Double barrel pneumatic powder feeding

Cladding head

High speed annular nozzle + powder distributor

Thickness of single layer

0.1-1mm

Deposition efficiency

0.3-1.0㎡/h

Substrate dilution rate

<5%-10%

Powder cathment efficiency

>80%

Control system

K1000MFi(KND servo bus control system)

Driving system

KND Servo motor

Effective stroke

(Customizable)



X

500mm

Y

3000mm

Z

500mm

B

360°continuous rotation

Rotation axis B

(Customizable)



Diameter of chuck

φ500mm(three-jaw self-centering)

Chuck clamping range

Φ25-φ500mm

Maximum rotary diameter of workpiece

Φ800mm

Maximum length of clamping workpiece

3m

Maximum load

3t

Spindle speed

0-600r/min(infinitely variable speeds)

Maximum speed of fast movement



X

18m/min

Y

20m/min

Z

12m/min

Triaxial repeated positioning accuracy

0.04mm

Adjustable Angle of Axis A of Cladding Head (Manual)

±30°

Powder collecting device

Follow-up powder tray

Power voltage

AC380V/50Hz

Whole machine weight

About 7t





Laser Cladding VS Other Processing Method



Laser cladding Spraying Galvanizing Overlaying Welding
Coating Layer Thickness 0.1-10mm 0.1-5mm 0.1-100μm 0.1-several mm
Workpiece Deformation Small Small Small Big
Bonding Form with Substrate Metallurgical Bonding Metallurgical Bonding Metallurgical Bonding Metallurgical Bonding
Bonding Strength High Relatively Low Low High
Coating Layer Hardness Controllable Controllable High Controllable



Application

Metal Laser Cladding Machine SFHS3050 can repair wear, corrosion, breakage, scratches, scratches, casting defects of various mechanical equipment. Cladding various metals, non-metallic materials such as tungsten carbide and ceramic powder.The surface of the substrate can be modified by acid and alkali – resistance, heat resistance and wear resistance.

For more details, welcome to contact us!
