The Fourth Generation Metal Fiber Laser Cutter

High power fiber laser cutter is mainly designed for high power :6kw to 20kw, it is with full-protection cover, which can prevent the laser radiation and protect the worker safety, reduce the environment pollution.

Product Description

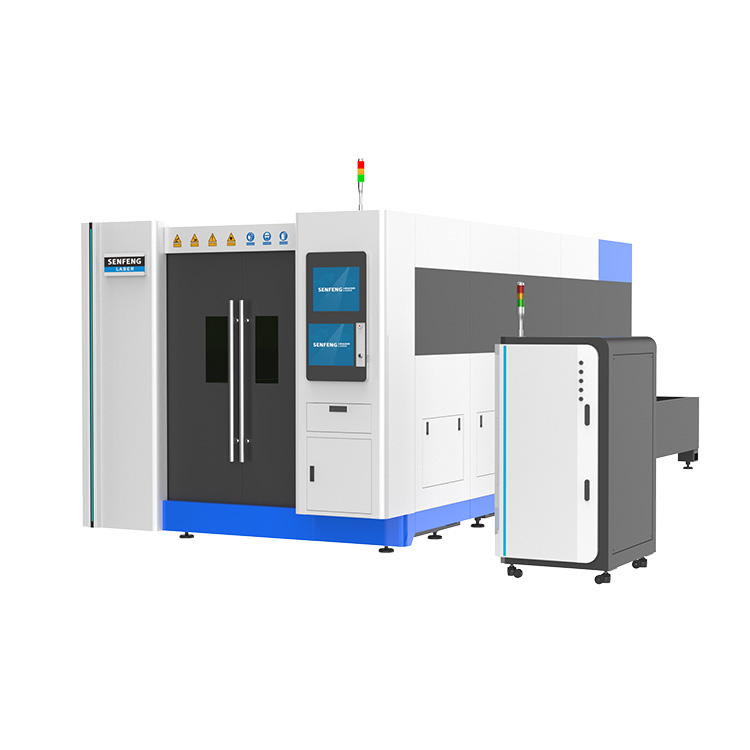

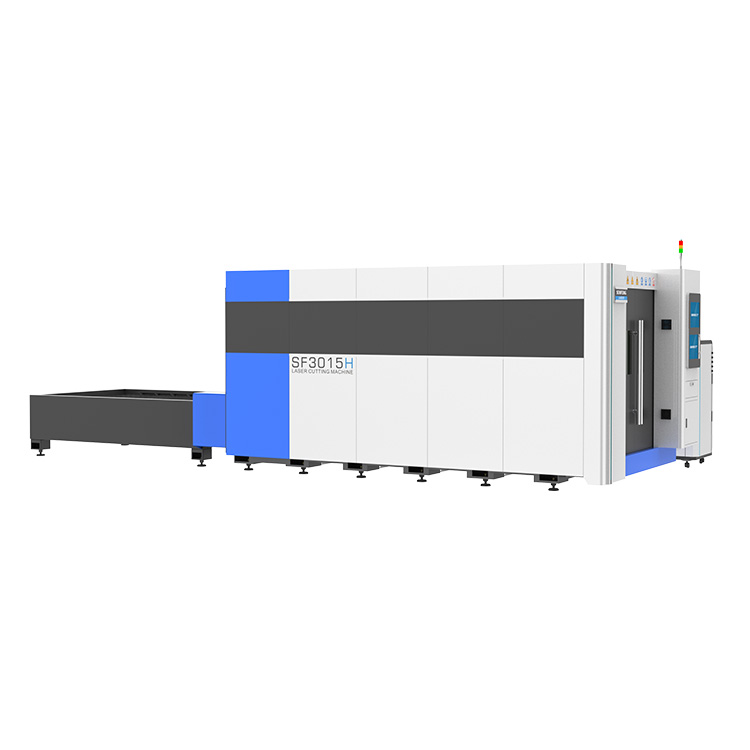

The 4th generation SF3015H high power fiber laser cutter is mainly designed for high power :6kw to 20kw, it is with full-protection cover, which can prevent the laser radiation and protect the worker safety, reduce the environment pollution; and it is also with auto-exchangeable platforms, which can save the materials loading time, improve the processing efficiency. The exchange platform only takes 20 seconds to complete the exchange. The SF3015H4 high power laser cutter has passed CE/FDA /ETL certifications, which is in line with European and American standards.

Technical Parameters

Model                       SF3015H/SF4020H/SF6020H/SF6025H/SF8025H/SF12025H
Working Area(mm) 3050* 1530/4050 * 2030/6050* 2030/6050* 2530/ 8050 * 2530/12050* 2530
Working Area(in) 120*60/159*80/238*80/238*100/317*100/ 474*100
X-axis Travel(mm) 1530/ 2030/2530
Y -axis Travel(mm) 3050/4050/6050/8050/12050
Laser Power(kw)

6/8/10/12/20

Maximum Speed(m/min)

130

Maximum acceleration(G)  1.0


X/Y Axis positioning accuracy(mm/m)



 ±0.05

 X/Y Axis repeated positioning accuracy(mm)

± 0.02



Cutting material and thickness in millimeters (mm)

Steel 6KW 8KW 12KW
Carbon steel(mm) 0.5-25 0.5-30 0.5-50
Stainless steel(mm) 0.5-18 0.5-30 0.5-50
Brass (mm) 0.5-12 0.5-16 0.5-26
Aluminum (mm) 0.5-12 0.5-30 0.5-50

Cutting material and thickness in inches (inch)

Steel 6KW 8KW 12KW
Carbon steel(inch) 0.019-0.984 0.019-1.181 0.019-1.968
Stainless steel(inch) 0.019-0.708 0.019-1.181 0.019-1.968
Brass (inch) 0.019-0.472 0.019-0.629 0.019-1.023
Aluminum (inch) 0.019-0.472 0.019-1.181 0.019-1.968




Application and Samples

What’s the Industry Application of The Fourth Generation SF3015H Fiber Laser Cutter

The SF3015H4 fiber laser cutting machine is specialized for sheet metal processing, machinery manufacturing, auto parts manufacturing, electrical manufacturing, elevator manufacturing, petroleum machinery, food machinery, shipbuilding etc.

What does the SF3015H4 High Power Fiber Laser Cutter cut?

Carbon steel, stainless steel, aluminum alloy, brass, copper, galvanized sheet, silicon steel sheet, electrolytic sheet, titanium alloy, manganese alloy, etc.
