Coil Fed Fiber Laser Cutting Machine

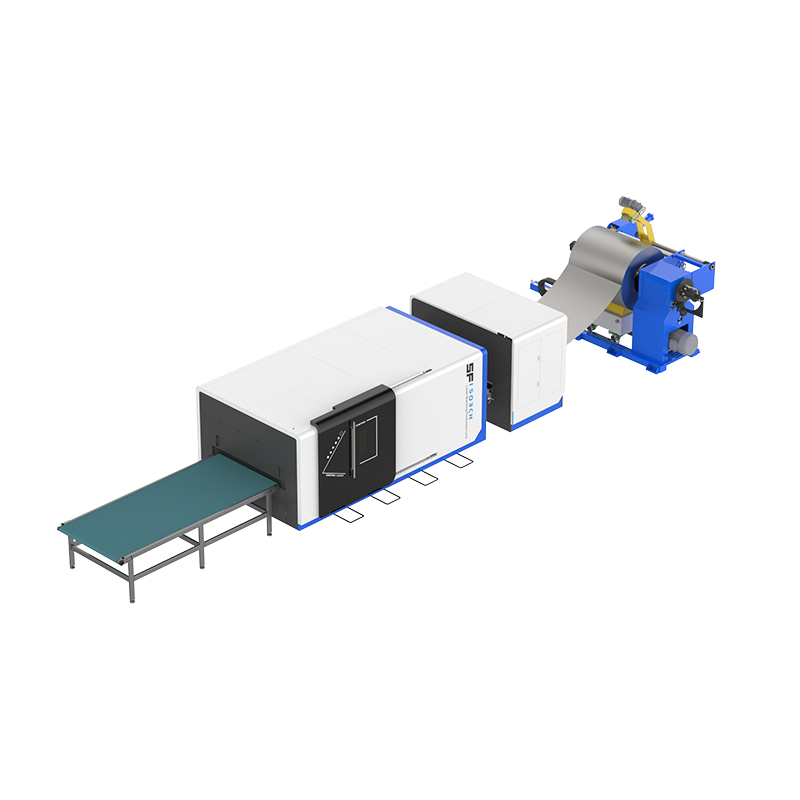

Rolled steel cutting machine is composed of a feeding trolley, a single support uncoiler, auxiliary support, a feeding mechanism, a leveling feeder, a sheet metal positioning and correction device, a laser cutting unit, and an electronic control system.
Quantity:

Product Description

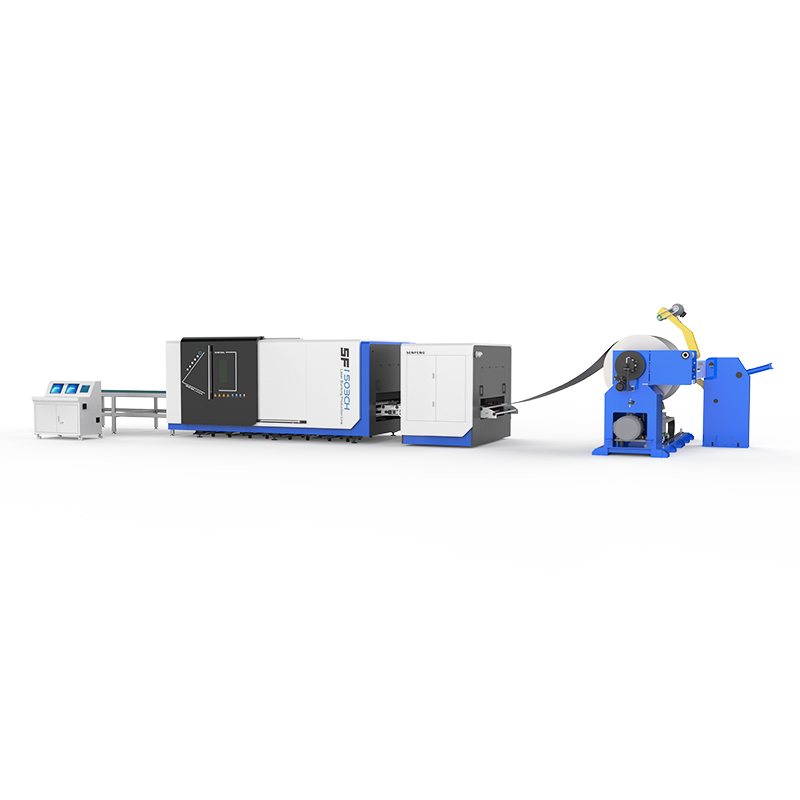

Rolled steel cutting machine is composed of a feeding trolley, a single support uncoiler, auxiliary support, a feeding mechanism, a leveling feeder, a sheet metal positioning and correction device, a laser cutting unit, and an electronic control system. The automatic design of the whole process, which is from loading-uncoiling-leveling-cutting saves labor, realizes the net cutting of coil materials, and improves the utilization of sheet materials.

Check out the video



Technical Parameters

Applicable materials

Cold rolled coil, galvanized coil,

stainless steel coil, aluminum coil

Working Area(mm) 3000*1500
Working Area(in) 118*59
Laser power(kw) 1/1.5/2/3/4
Material thickness(mm) 0.5-2
Material width(mm) 500-1500
Maximum outer diameter of material(mm) Φ1500
Maximum coil weight(T) 10
Material inner diameter(mm) Φ508/Φ610
Feeding accuracy(mm) ±0.5 (calculated by 1000mm)
Feeding speed(m/min) 0-10 (stepless speed regulation)



Application and Samples

Cutting Samples

Application

This product is mainly used in the cutting field of thin stainless steel materials and industries where the thickness of the product is relatively single. For example, automotive sheet metal parts, aluminum veneer, electrical cabinets, metal door industry, kitchen utensils industry, equipment sheet metal, etc.

application



For more details, welcome to contact us!
