Technical Parameters

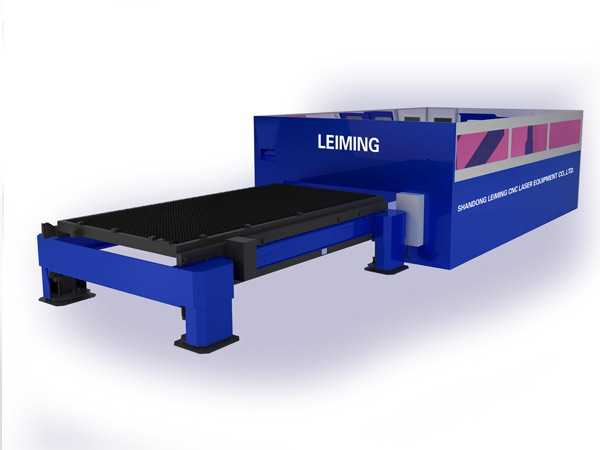

LM3015H 2000W carbon steel fiber laser cutting machine can be equiped with 1500w/2000w/3000w/4000w/6000w,working size 118.1*59(inch) or 157.48*78.74(inch),and it has full protection cover and auto-feeding device.For more detailed information about this machine,feel free to send inquiry(click inqury above) to us or welcome to LEIMING
| Model | LM3015H |
| Working Area | 3000mm*1500mm |
| Laser Power | 1500W/2000W/3000W/4000W/6000W |
| Maximum velocity of movement | 80m/min |
| X/Y axis positioning accuracy | ±0.05mm |
| X/Y axis repeated positioning accuracy | ±0.03mm/m |
| X/Y/Z axis stroke | 3000mm/1500mm/220mm |
| Machine dimension | 8360*2800*2000 |
| Transmission | Precise pinion and rack, dual-drive transmitting |
Cutting Materials and Thickness
| Stainless Steel | 0.4-6mm | 0.4-8mm | 0.4-10mm | 0.4-12mm | 0.4-14mm |

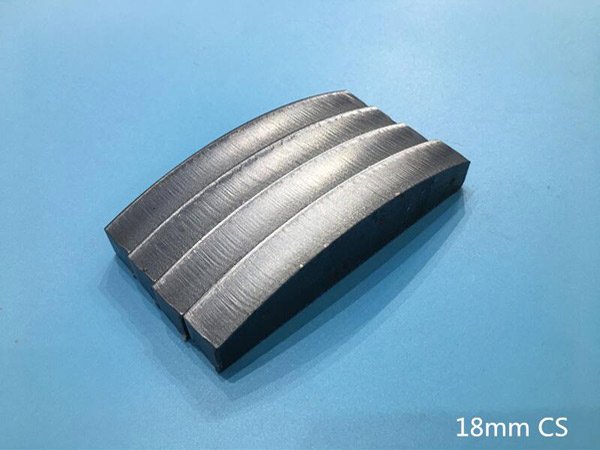

| Carbon Steel | 0.4-14mm | 0.4-16mm | 0.4-20mm | 0.4-22mm | 0.4-24mm |
| Aluminum | 0.4-4mm | 0.4-6mm | 0.4-8mm | 0.4-10mm | 0.4-12mm |
| Fiber Power | 1500W | 2000W | 3000W | 4000W | 6000W |
More details about other thin metal materials,just leave your message on line or send e-mail to sale@lmcnclaser.com .
Features
Top quality fiber laser generator Raycus brand(option IPG), with great and stable performance, having lifespan over 100,000 hours.
Stable welding machine body,insuring the cutting speed stable and fast.
Stable and reliable light path system and control system.
Imported high performance reducer,gear and rack.
Video
Application
Full Cover Fiber Laser Cutter LM3015H is specially for cutting 0.4-20mm carbon steel plates, 0.4-14mm stainless steel, galvanized steel plates,electrolytic zinc-coated steel ,0.4-10mm aluminum sheet and 0.4-8mm brass and other thin metal materials.
