Technical Parameters
| Model | LM3015G3 | LM4020G3 |
| Processing area | 3000mm*1500mm | 4000mm*2000mm |
| Laser power | 500W/750W/1000W/1500W/2000W/3000W | 1000W/1500W/2000W/3000W |
| Maximum velocity of movement | 120m/min | 120m/min |
| X/Y axis positioning accuracy | ±0.05mm | ±0.05mm |
| X/Y axis repeated positioning accuracy | ±0.03mm/m | ±0.03mm/m |
| Machine dimension | 4630*2670*1960 | 5730*3220*1960 |
| Transmission | Precise pinion and rack, dual-drive transmitting | Precise pinion and rack, dual-drive transmitting |
Cutting Materials and Thickness
| Stainless Steel | 0.4-3mm | 0.4-4mm | 0.4-5mm | 0.4-6mm | 0.4-8mm | 0.4-10mm |
| Carbon Steel | 0.4-6mm | 0.4-10mm | 0.4-12mm | 0.4-14mm | 0.4-16mm | 0.4-20mm |
| Aluminum | 0.4-2mm | 0.4-3mm | 0.4-3mm | 0.4-4mm | 0.4-6mm | 0.4-8mm |
| Fiber Power | 500W | 750W | 1000W | 1500W | 2000W | 3000W |
More details about other thin metal materials,just leave your message on line or send e-mail to sale@lmcnclaser.com .
Features

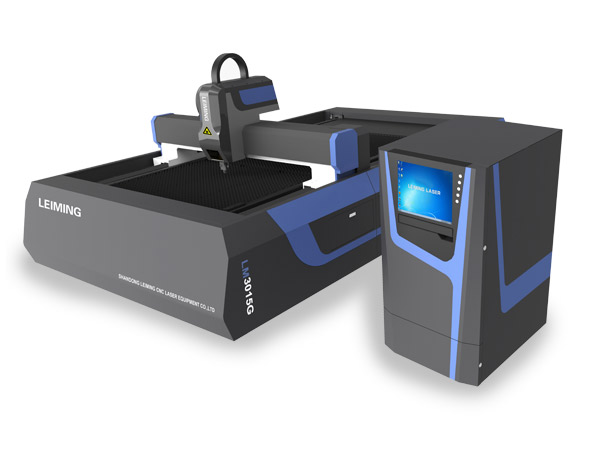

Four main features of LM3015G3 carbon steel fiber laser cutting machine
A.Top quality fiber laser generator Raycus brand(option IPG), with great and stable performance, having lifespan over 100,000 hours.
B.Stable plate-welding machine body,insuring the cutting speed stable and fast
C.Stable and reliable light path system and control system.
D.Imported high performance reducer,gear and rack.
Video
Application
Metal Sheet Fiber Laser Cutter LM3015G3 is specially for cutting 0.4-12mm carbon steel plates, 0.4-8mm stainless steel, galvanized steel plates,electrolytic zinc-coated steel ,0.4-5mm aluminum sheet and 0.4-4mm brass and other thin metal materials.
