Product Description
SF1530G is a single table fiber laser cutter machine for cutting metal sheet. The fiber laser power is 1kw/1.5kw/2kw/3kw. SF1530G has a small footprint(4890*2300mm/192.52*90.55inches) and low economic cost. The fully enclosed structure and the partitioned dust removal system help reduce environmental pollution. The pull-out platform is more convenient for loading and unloading materials.The metal sheet laser cutter passed CE/FDA /ETL certifications, which is in line with European and American standards.
Product Parameter
| Model | SF1530G |
| Working Area | 3000*1500mm or 118.11*59.06inches |
| Laser Power | 1kw/1.5kw/2kw/3kw |
| Power Source | 380V，50Hz |
| X -axis Travel | 3000mm/118.11inches |
| Y -axis Travel | 1500mm/59.06inches |
| Z -axis Travel | 120mm/4.72inches |
| X/Y Axis positioning accuracy | ±0.05mm |
| X/Y Axis repeated positioning accuracy | ±0.02mm |
| Maximum Velocity of Movement | 80m/min or 3149.61inches/min |
| Maximum Acceleration | 0.8G |
Cutting material and thickness in millimeters (mm)
| Material | 1kw | 1.5kw | 2kw | 3kw |
| Carbon steel（mm） | 0.4-12 | 0.4-16 | 0.4-18 | 0.4-20 |
| Stainless steel（mm） | 0.4-5 | 0.4-6 | 0.4-8 | 0.4-12 |
| Brass （mm） | 0.4-3 | 0.4-5 | 0.4-6 | 0.4-8 |
| Aluminum （mm） | 0.4-3 | 0.4-6 | 0.4-8 | 0.4-10 |
Cutting material and thickness in inches (inch)
| Material | 1kw | 1.5kw | 2kw | 3kw |
| Carbon steel（inch） | 0.015-0.472 | 0.015-0.629 | 0.015-0.708 | 0.015-0.787 |
| Stainless steel（inch） | 0.015-0.196 | 0.015-0.236 | 0.015-0.314 | 0.015-0.472 |
| Brass （inch） | 0.015-0.118 | 0.015-0.196 | 0.015-0.236 | 0.015-0.314 |
| Aluminum （inch） | 0.015-0.118 | 0.015-0.236 | 0.015-0.314 | 0.015-0.393 |
Advantages
1.Fast Speed
The speed can reach 10m/min when cutting thin plates, and the speed of thin plate cutting is much faster than that of plasma cutting machines.
2.High Quality and Precision
The cutting surface can be directly used for welding without grinding, the surface deformation is small, the roughness value is low, and the accuracy is high.
Fiber laser cutting can accurately complete complex cutting with good edge quality.
A precise laser beam can create components with precision tolerances in a fast, clean, and effective way without operator intervention.
3.Cost-Effective
Maintenance costs are low, and cost-effective in cutting thin plates.
Advanced software and narrow cuts allow the parts to be closely nested, thereby maximizing yield and reducing material waste.
Main Configuration
1.Honeycomb Carbon Structural Steel Welding Bed
The bed is welded by high-quality steel plate and pipe. After welding, it undergoes stress relief annealing, secondary aging treatment, and precision machining on a large planomiller to ensure that the bed has sufficient structural stability, shock resistance and no deformation for long time.
2.Intelligent Spiral Surrounding Vacuum Dust Removal System
According to the current cutting position, this system automatically opens and closes the air outlet to perform partitioned air exhaust. At the same time, it cooperates with the bottom sealing structure design to achieve smokeless cutting.
3.Pull-out Platform
The worktable can pull out the bed 800mm, and at the same time it can use auxiliary equipment to load and unload materials.

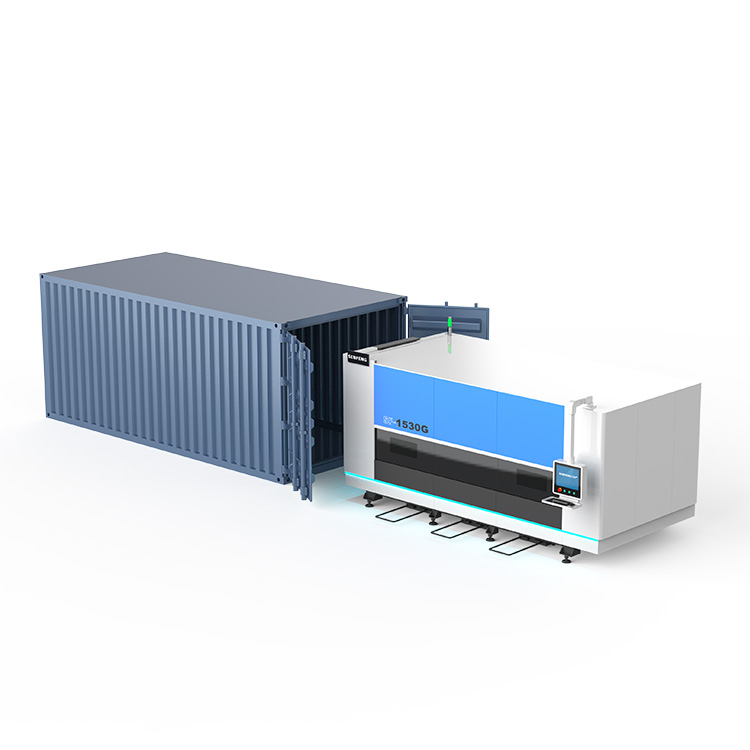

4.Packing
Save freight cost.Save installation time. Whole machine can fit into a 20-foot container.
